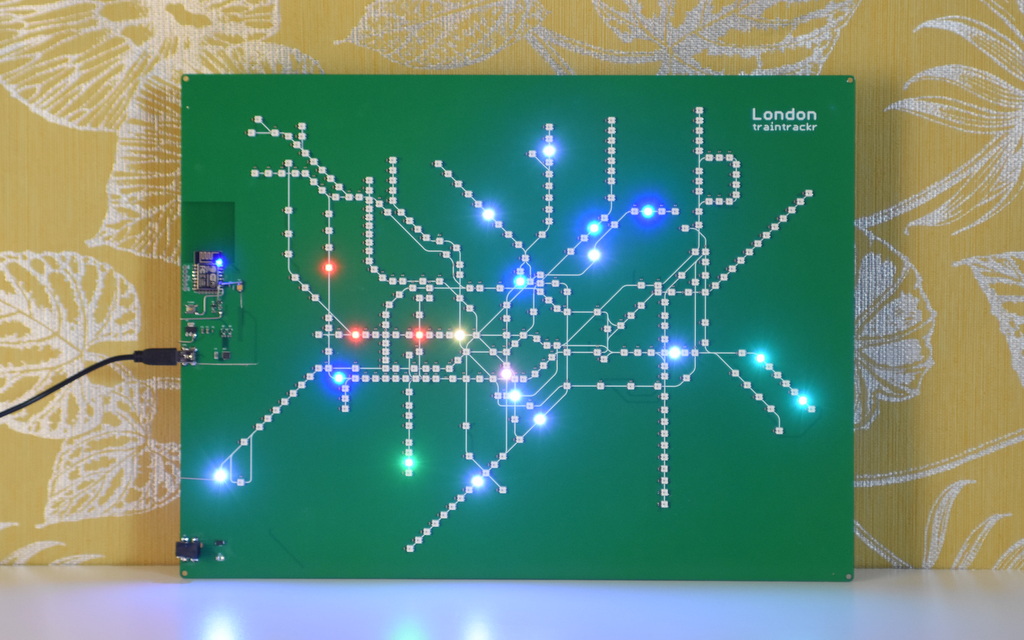

London Underground (Large)
Tracks trains on the London Underground, showing trains arriving in stations live, as each vehicle moves around the network.
Board shows all 12 main underground lines: Bakerloo, Central, Circle, District, DLR, Hammersmith & City, Jubilee, Metropolitan, Northern, Piccadilly, Victoria, Waterloo & City

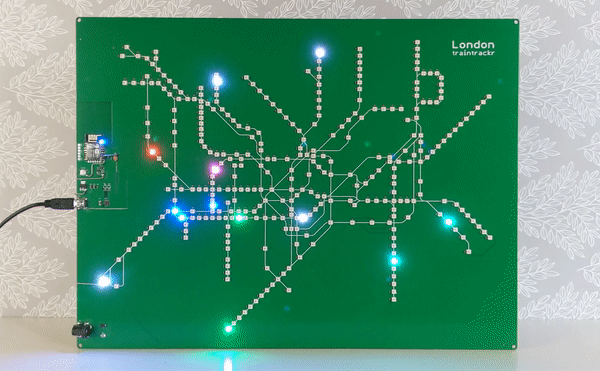

Animation shown at 5x Speed
Receives live data over WiFi
LEDs update every 1/10 second
Uses 333 RGB (Red, Green, Blue) LEDs
$315
Usually dispatched within 3-4 Weeks
Free US Shipping
Included
Ships to the US
and Canada
Includes Standard
1 Year Warranty
Designed in Somerville USA
and London UK
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to server every minute
- LED Count: 333
- LED Type: 3535 Surface Mount
- LED Size: 3.5mm x 3.5mm
- LED Colour: RGB (Red, Green, Blue)
- Brightness control: 16 Level
- 1000mA @ 5V
- Included: Power supply and Cable
- Material: 1.6mm FR-4
- Size: 400mm x 300mm (15.7in x 11.8in)
- Colour: Green
- Microcontroller: ESP8266 (ESP-12E)
- LED Driver: WS2812B-MINI
- USB to UART: CP2104
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- Power Supply and Cable
- Setup Instructions
Shipping and Warranty
Shipping
- Free US Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via built-in USB to UART, or FTDI Pins
- Program using Arduino IDE or similar
- Hackable!
