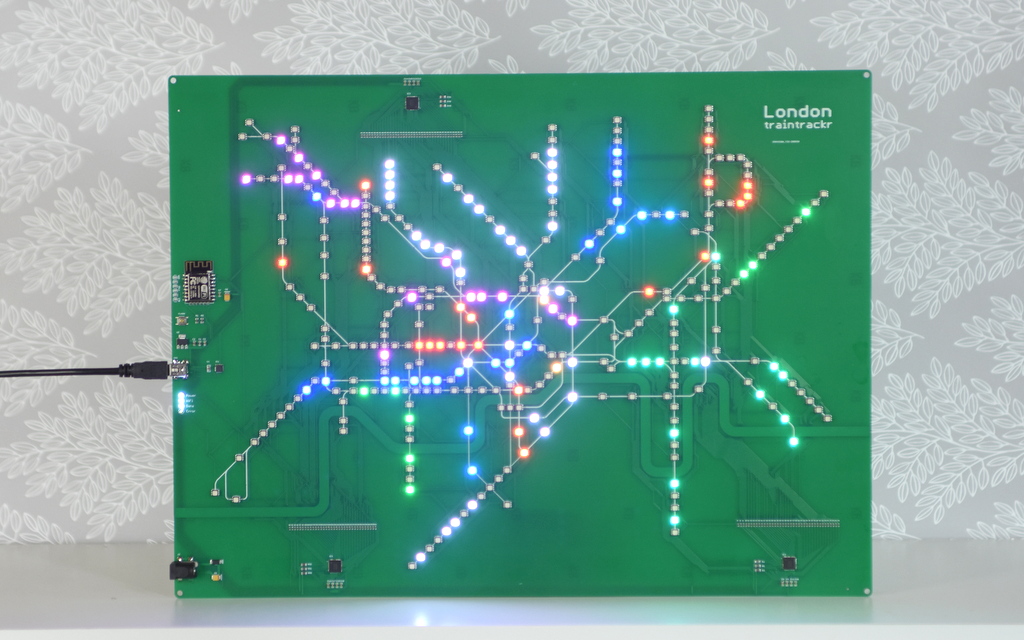

London Underground (Large)

Tracks trains on the London Underground, showing trains arriving in stations live, as each vehicle moves around the network.

Board shows all 12 main underground lines: Bakerloo, Central, Circle, District, DLR, Hammersmith & City, Jubilee, Metropolitan, Northern, Piccadilly, Victoria, Waterloo & City

Animation shown at 5x Speed

Receives live data over WiFi

LEDs update every 1/10 second

Uses 333 RGB (Red, Green, Blue) LEDs

$315

In Stock

Free US Shipping
Included

Ships from the US

Ships to the US
and Canada

Includes Standard
1 Year Warranty

Designed in Somerville USA
and London UK

Specifications

Connectivity

WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
Data: Connects to our server every minute
Or connect to your own data sources

Display

LED Count: 333
LED Type: 3535 Surface Mount
LED Size: 3.5mm x 3.5mm
LED Colour: RGB (Red, Green, Blue)
Brightness control: 16 Level

Power

1000mA @ 5V
Included: Power supply and Cable

Circuit Board

Material: 1.6mm FR-4
Size: 400mm x 300mm (15.7in x 11.8in)
Colour: Green

Main Components

Microcontroller: ESP8266 (ESP-12E)
LED Driver: IS31FL3741A
USB to UART: CP2104 (on some boards)

Stand

Material: 6mm MDF
Laser cut ready to assemble

What's in the Box?

Package Contains

Live Tracker
Wooden Stand
Power Supply and Cable
Setup Instructions

Shipping and Warranty

Shipping

Free US Shipping
Ships to the US and Canada
Tracking code supplied once dispatched

Warranty

Standard 1 Year

Maker Friendly

Firmware

Flash the chip via built-in USB to UART, or FTDI Pins
Program using Arduino IDE or similar
Hackable!

To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.
