US Map Trackr (Color)
Geographic Map

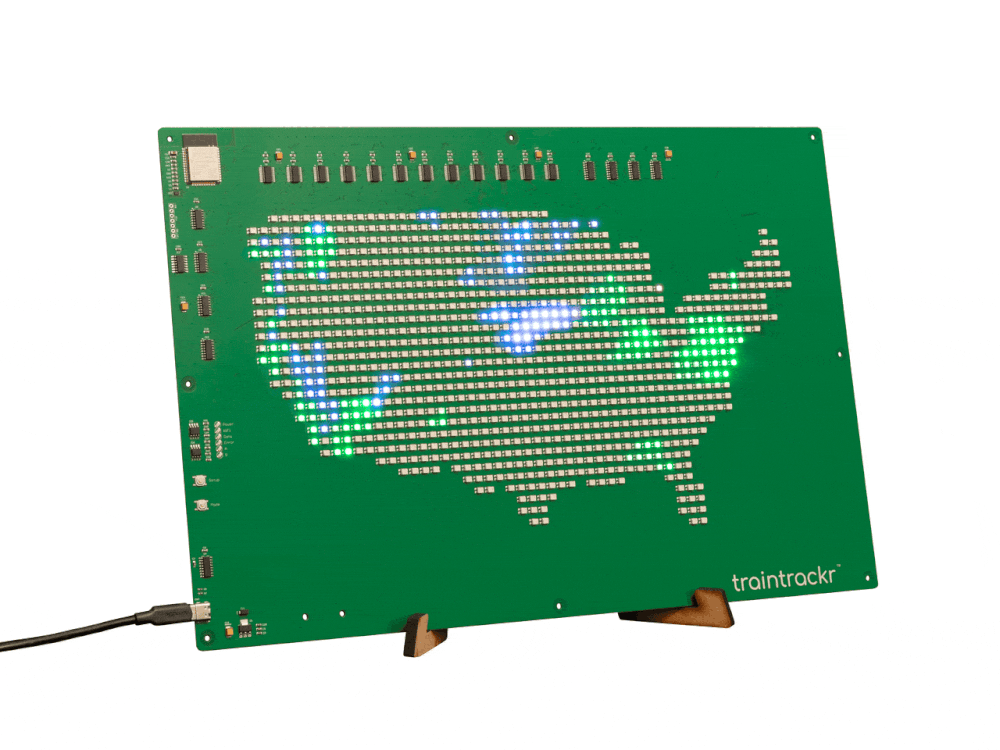

Tracks weather conditions (precipitation, snow, wind speed, cloud cover, sun) through the US, displayed on colored LEDs.
We continually process live weather images on our servers, so you can see what's really happening out there.
Display the most recent conditions, or enable animations to show the evolution of the weather.
$299
Ships from the US
Ships to the US
and Canada
Switch to UK
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 1024
- LED Type: 3528 Surface Mount
- LED Size: 3.5mm x 2.8mm
- LED Colour: Multicolour (RGB)
- Brightness control: 16 Level
- 1000mA @ 5V
- Included: Power supply and Cable
- Material: 1.6mm FR-4

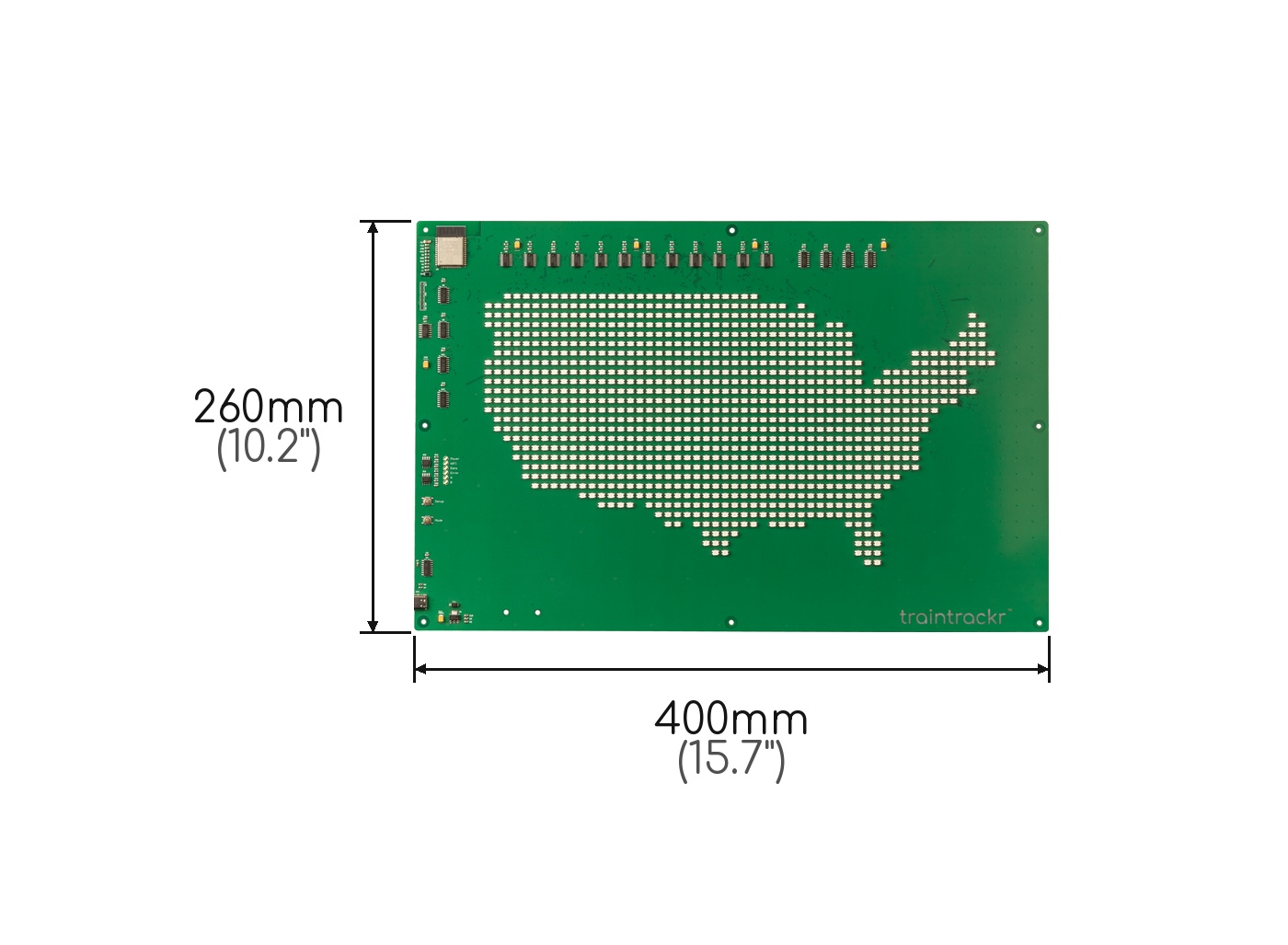

- Size: 400mm x 260mm (15.7in x 10.2in)
- Colour: Green
- Microcontroller: ESP32
- LED Driver: ICN2028/ICN2012
- Material: 6mm MDF
- Laser cut ready to assemble

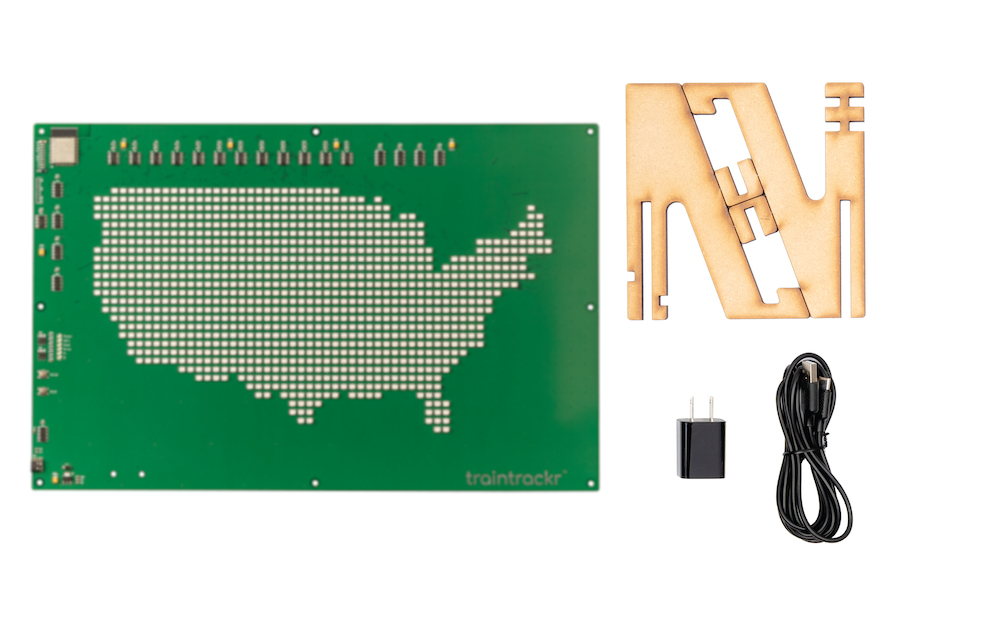

What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- Power Supply and Cable
- Setup Instructions
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
