Washington Metro
Rapid Transit
**** Updated for 2023 - now includes Potomac Yard station ****
This beautiful PCB displays the live bi-directional movement of trains throughout all stations on the Washington Metro (including the Silver Line extension).
It includes a representation of the Potomac River using a contrasting copper pour beneath the green solder resist of the board.
$239
Ships from the US
Ships to the US
and Canada
Switch to UK
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 404
- LED Type: 2020 Surface Mount
- LED Size: 2.0mm x 2.0mm
- LED Colour: RGB (Red, Green, Blue)
- Brightness control: 16 Level
- 500mA @ 5V
- Included: Power supply and Cable
- Material: 1.6mm FR-4

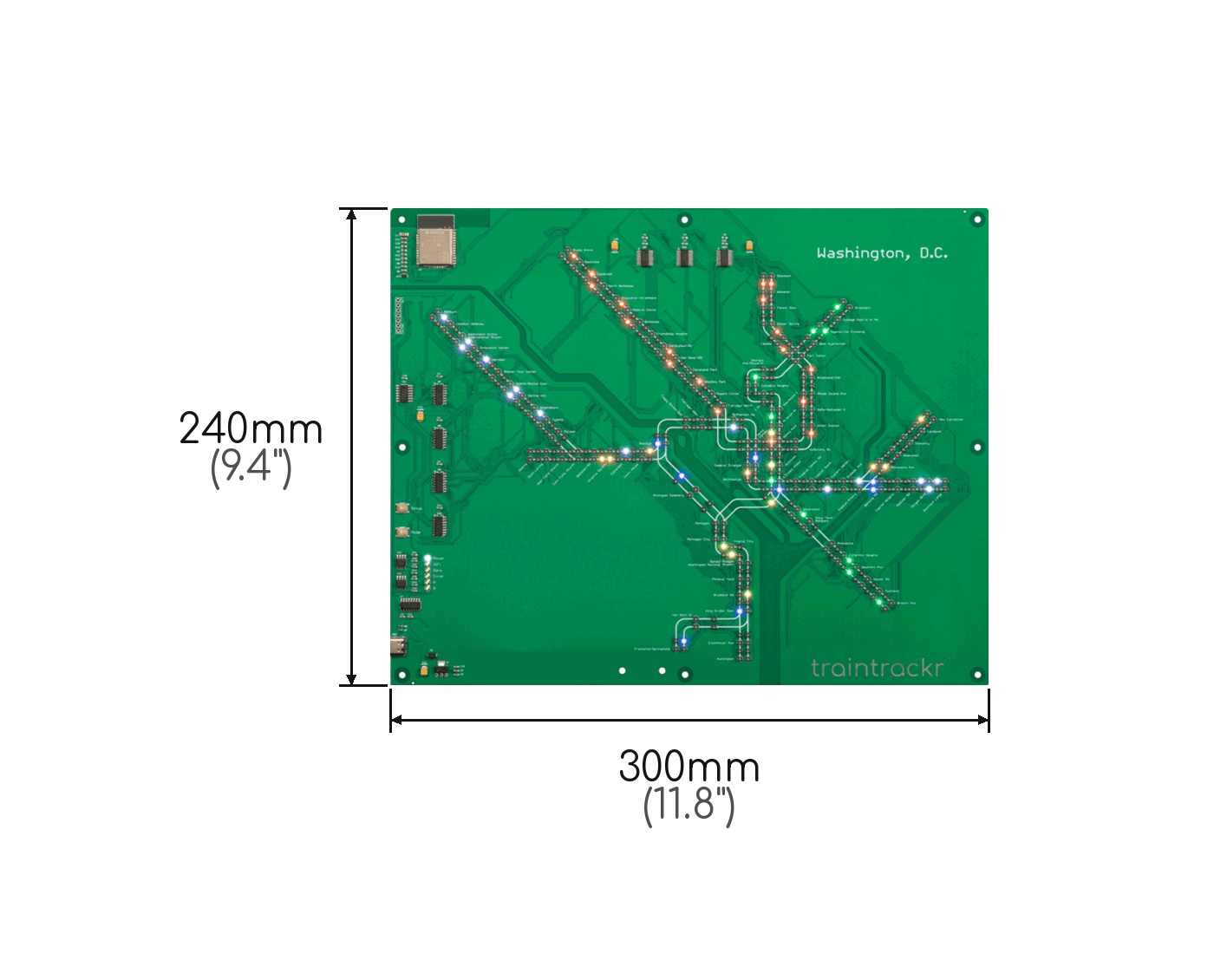

- Size: 300mm x 240mm (11.8in x 9.4in)
- Colour: Green
- Microcontroller: ESP32
- LED Driver: ICN2038/ICN2012
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- Power Supply and Cable
- Setup Instructions
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
My wife gave me the London Underground (Large) traintrackr for my 40th birthday today and it is literally the coolest gift I have ever received.
Reviews
14th of July 2024 (Review for: wmata4)
Once I got the 2 board (Washington DC Metro System) and after the several hours on Saturday the 13th I finally got it to work! I was so excited and amazed that it's working and how cool and awesome it is! Wow! After connecting to the Traintrackr WifI I had to do the alternate setup where you open a new tab and enter some IP Address and configure the WiFi etc. That is what did it for me and got it up and running! I love this!! It's great!!! I even got up in the middle of the night to see most of the lights off because no train was running. Great product!!
