UK Map Trackr
Geographic Map
*** Updated Design 2021 *** Added additional data layers, animations, and individually dimmable LEDs
Tracks weather conditions (rain and snow, wind speed, cloud cover) through the UK and Ireland, displayed on individually dimmable LEDs.
We continually process live weather images on our servers, so you can see what's really happening out there.
$129
Ships from the US
Ships to the US
and Canada
Includes Standard
1 Year Warranty
Designed in Somerville USA
and London UK
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 338
- LED Type: 0805 Surface Mount
- LED Size: 2.0mm x 1.25mm
- LED Colour: White
- Brightness control: 16 Level
- 500mA @ 5V
- Included: 1.8M USB Cable
- Material: 1.6mm FR-4
- Size: 105mm x 129mm (4.1in x 5.1in)
- Colour: Green

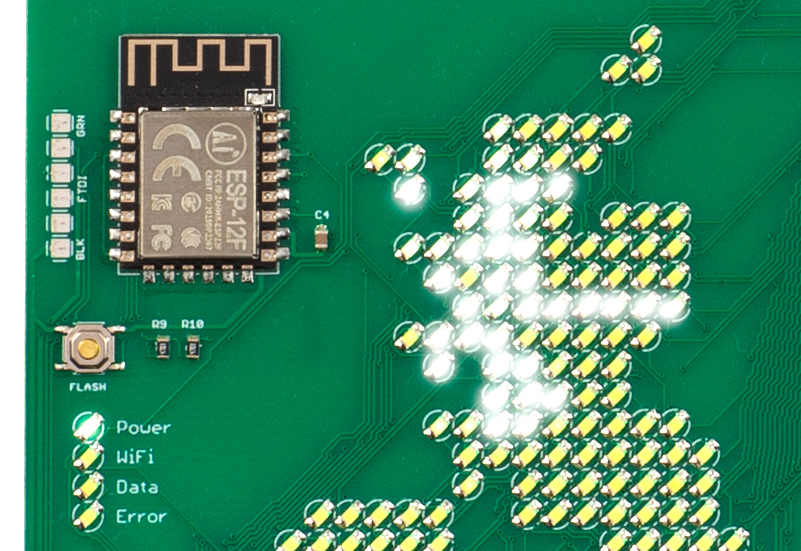

- Microcontroller: ESP8266 (ESP-12E)
- LED Driver: IS31FL3741A
- USB to UART: CP2104 (on some boards)
- Material: 6mm MDF
- Laser cut ready to assemble

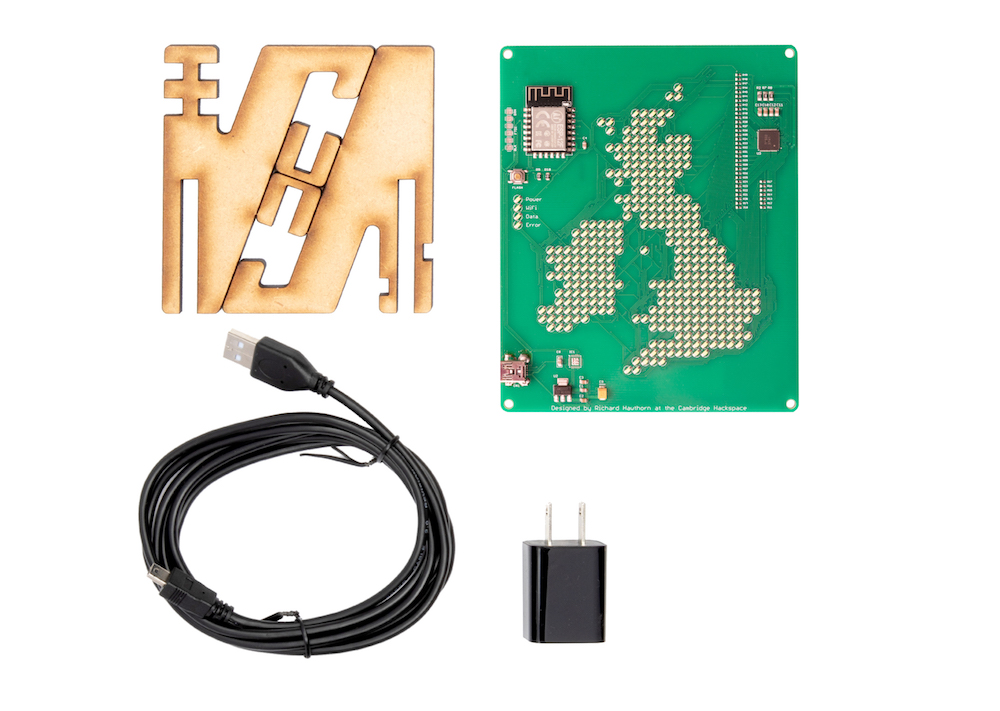

What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- USB Cable
- Setup Instructions
Note: You will need to plug this into a USB phone charger or computer USB port for power.
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via built-in USB to UART, or FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
My wife gave me the London Underground (Large) traintrackr for my 40th birthday today and it is literally the coolest gift I have ever received.
