London Underground - Piccadilly Line
Rapid Transit
Tracks trains on the Piccadilly line of the London Underground, showing trains arriving in stations live, as each vehicle moves around the network.

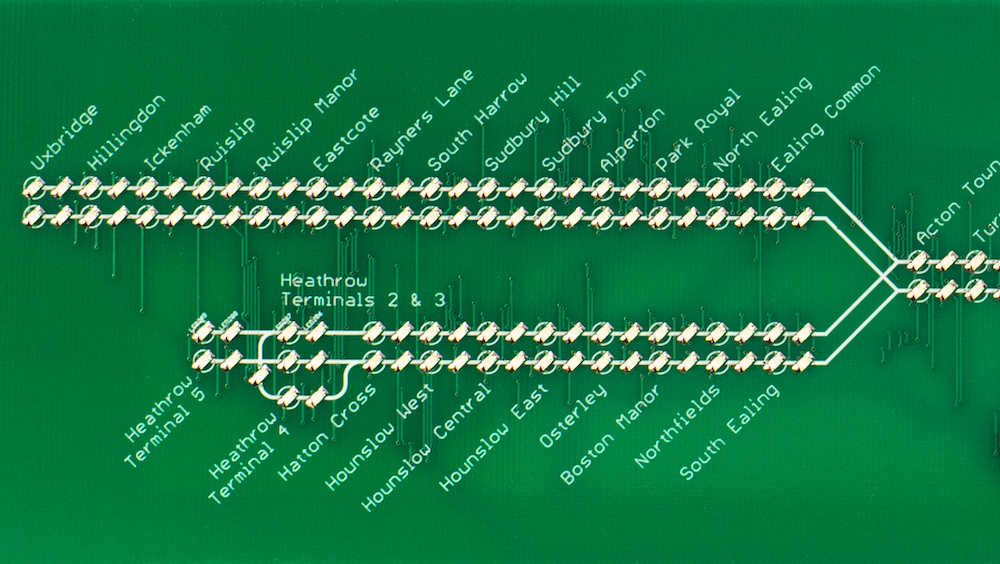

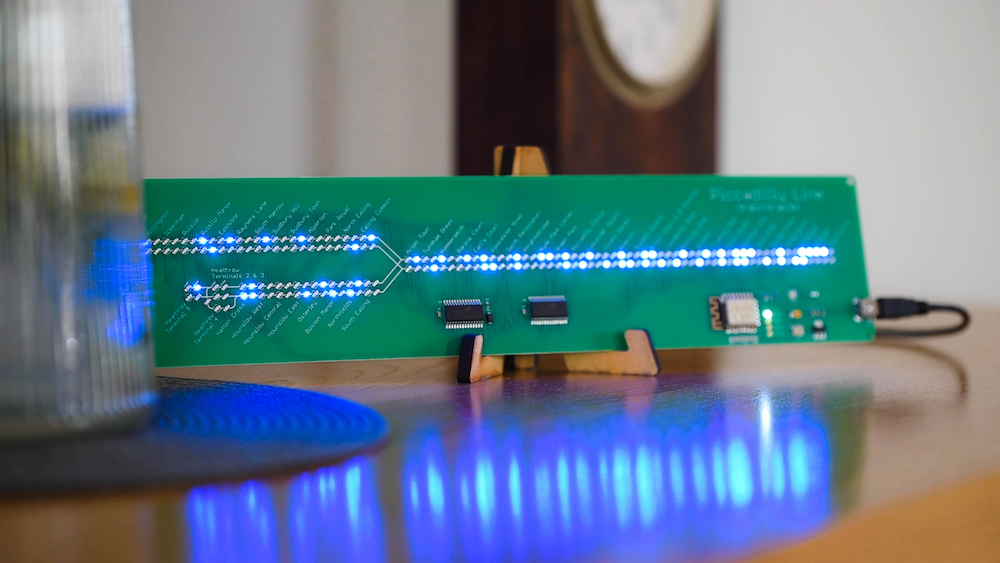

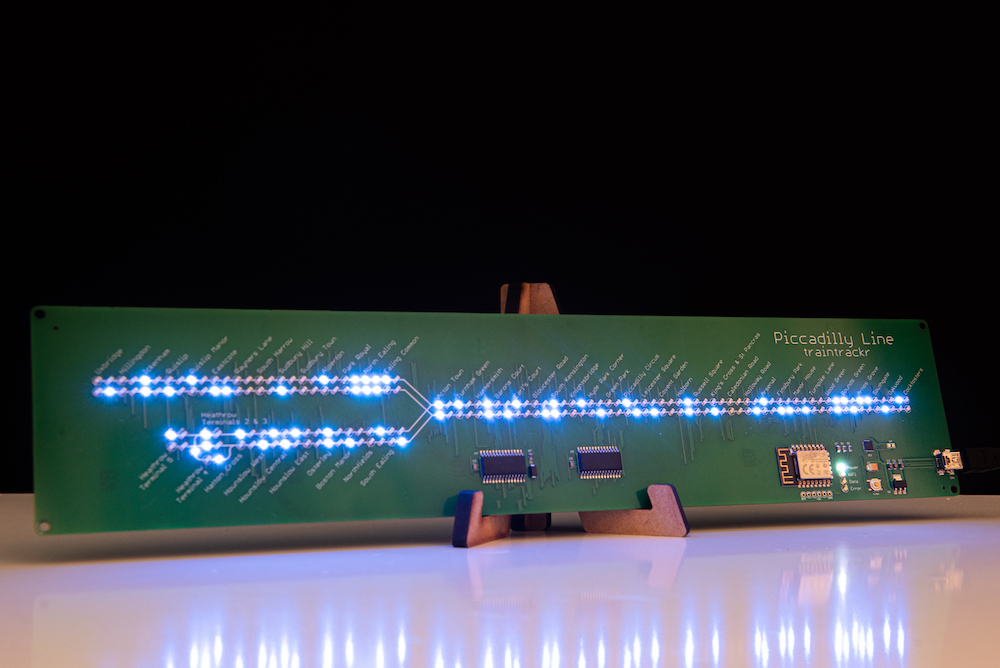

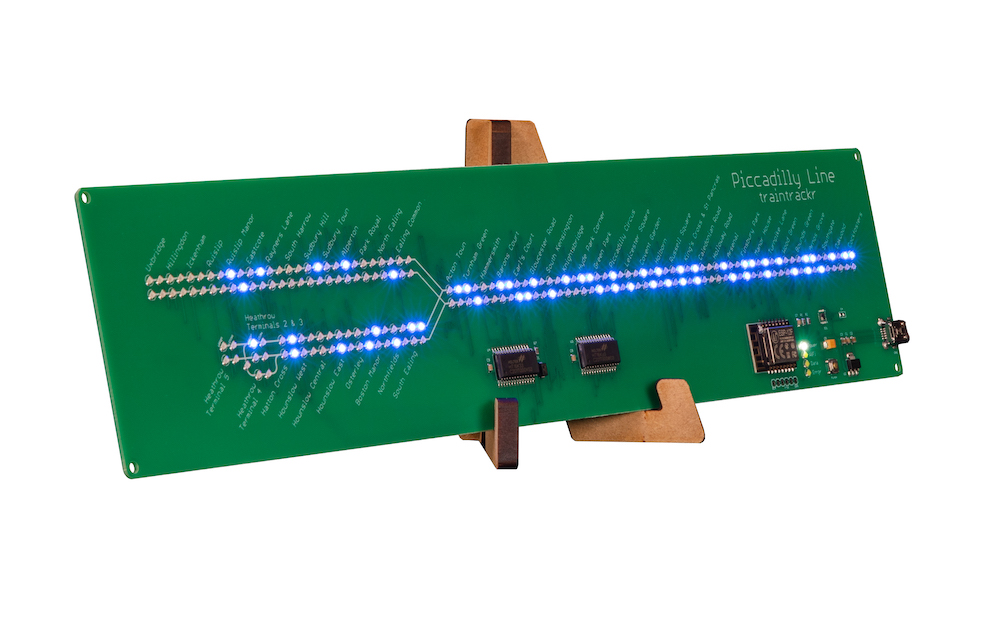

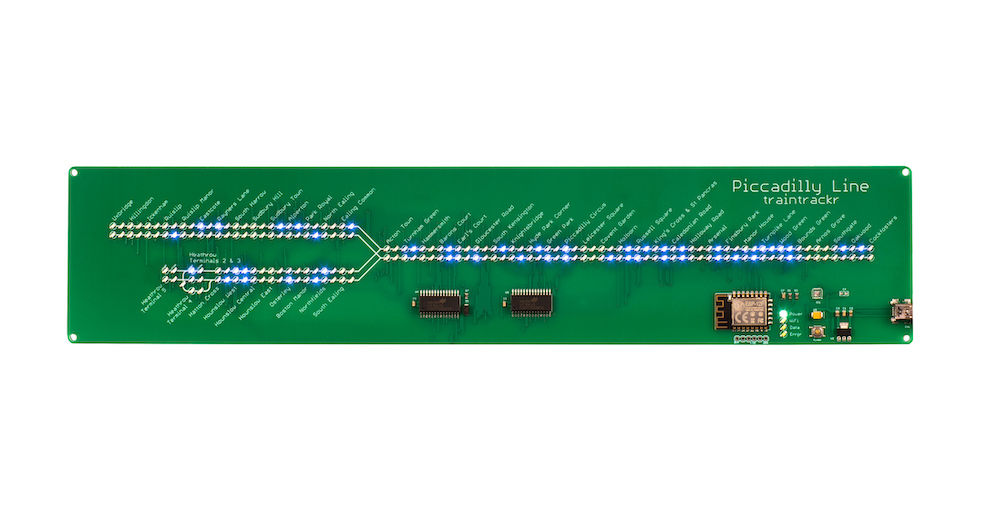

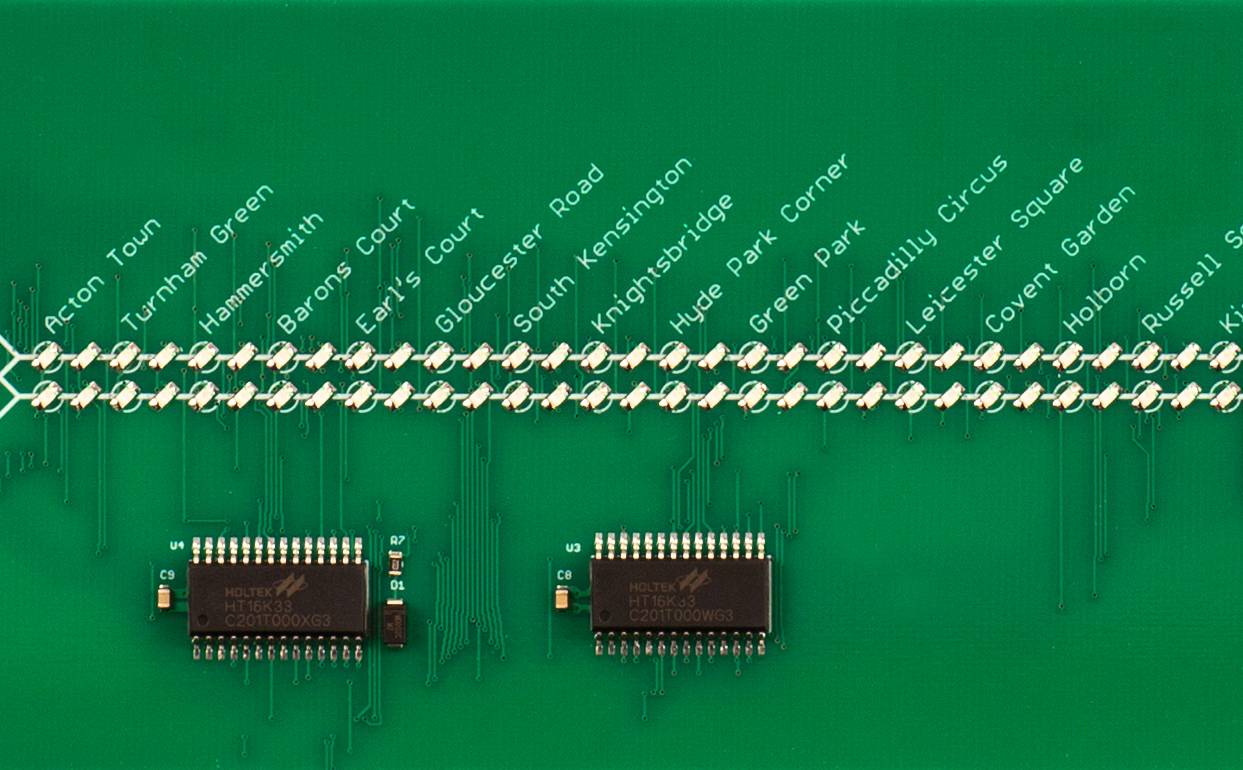

Board shows all Piccadilly line stops, showing trains moving in both directions on two sets of LEDs
Receives live data over WiFi
LEDs update every second
Uses 209 Blue LEDs
$129
In Stock
Ships from the US
Ships to the US
and Canada
Switch to UK
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Looking for shipping to the UK and Europe? Try our UK Site
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 209
- LED Type: 0805 Surface Mount
- LED Size: 2.0mm x 1.25mm
- LED Colour: Blue
- Brightness control: 16 Level
- 500mA @ 5V
- Included: Power supply and Cable
- Material: 1.6mm FR-4
- Size: 380mm x 80mm (15in x 3.1in)
- Colour: Green

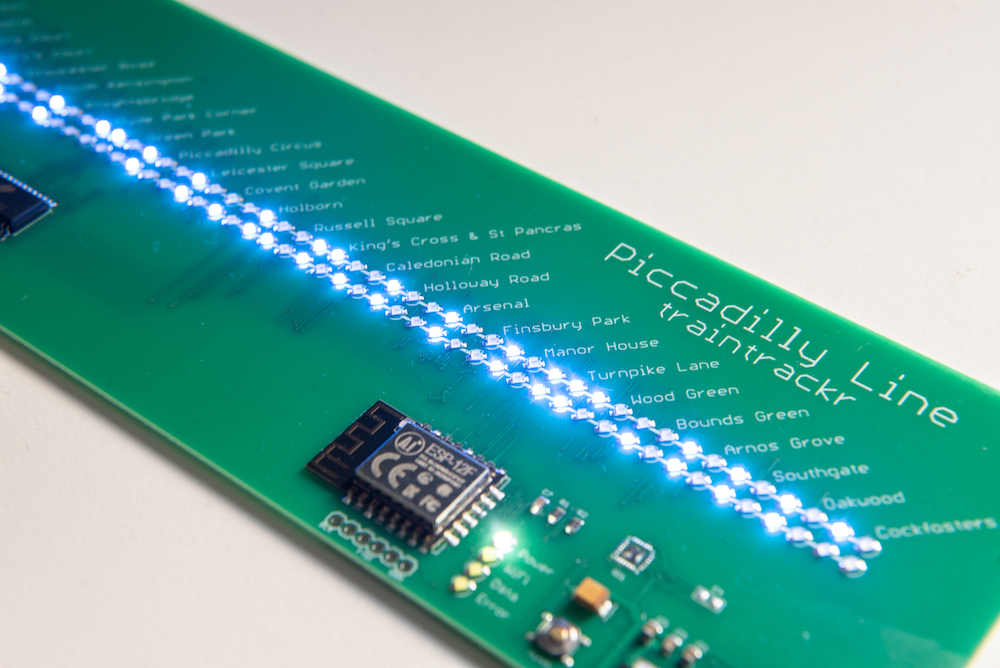

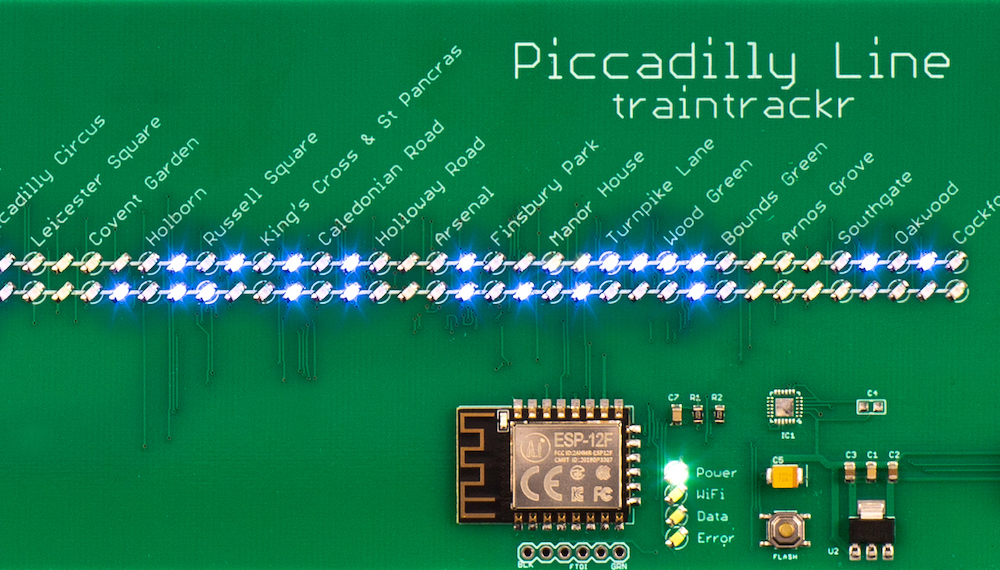

- Microcontroller: ESP8266 (ESP-12E)
- LED Driver: HT16K33
- Material: 6mm MDF
- Laser cut ready to assemble

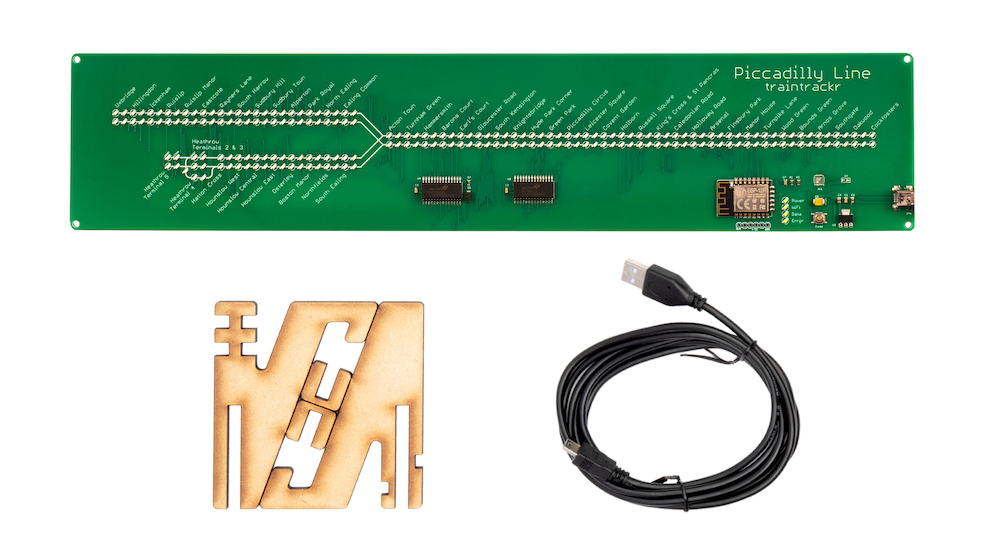

What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- Power Supply and Cable
- Setup Instructions
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.
