London Underground - Northern Line
Tracks trains on the Northern line of the London Underground, showing trains arriving in stations live, as each vehicle moves around the network.

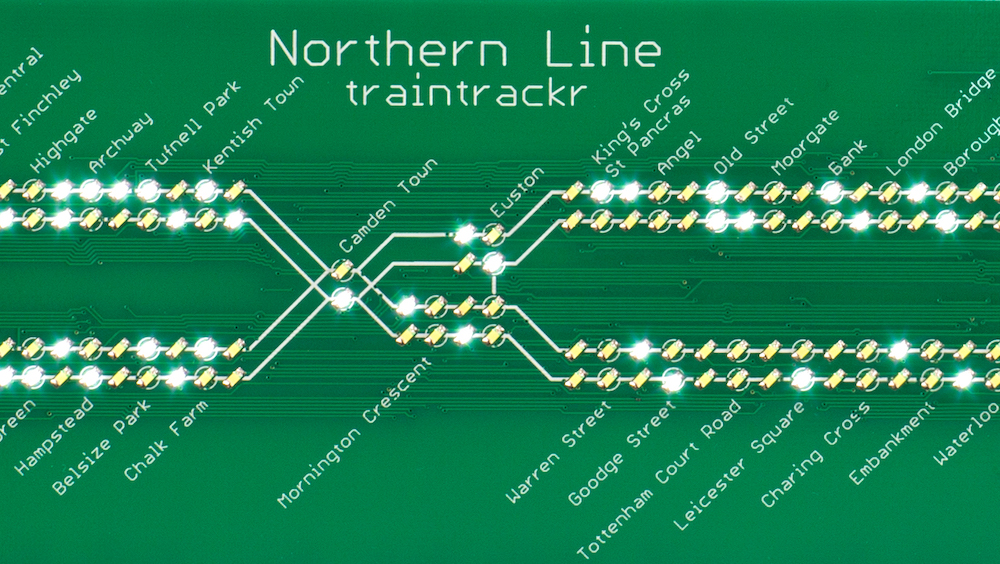

Board shows all Northern line stops, showing trains moving in both directions on two sets of LEDs
$129
Ships May/June 2021
Free US Shipping
Included
Ships from the US
Ships to the US
and Canada
Includes Standard
1 Year Warranty
Designed in Somerville USA
and London UK
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 214
- LED Type: 0805 Surface Mount
- LED Size: 2.0mm x 1.25mm
- LED Colour: White
- Brightness control: 16 Level
- 500mA @ 5V
- Included: 1.8M USB Cable
- Material: 1.6mm FR-4
- Size: 310mm x 80mm (12.2in x 3.1in)
- Colour: Green
- Microcontroller: ESP8266 (ESP-12E)
- LED Driver: HT16K33
- USB to UART: CP2104
- Material: 6mm MDF
- Laser cut ready to assemble

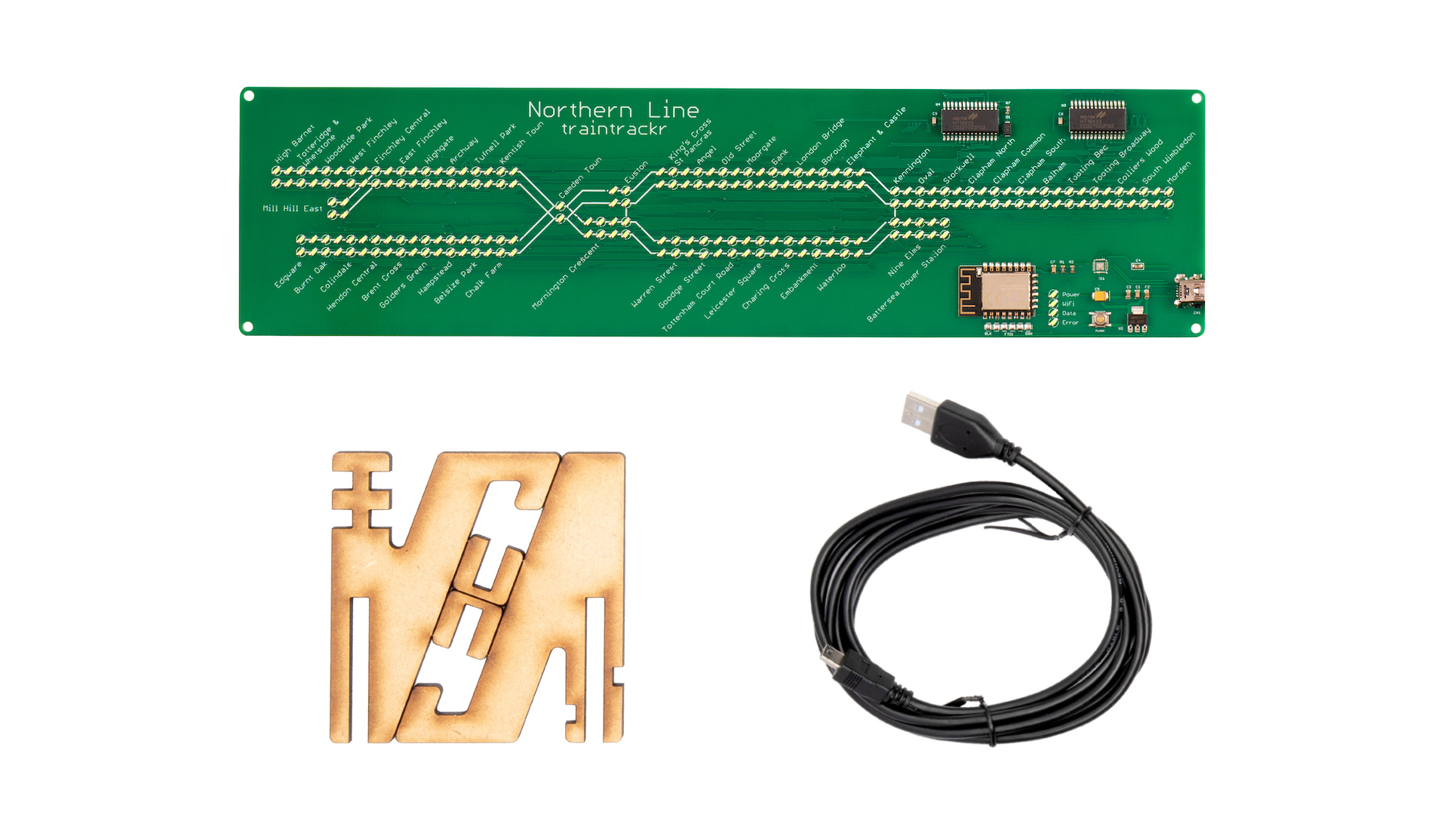

What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- USB Cable
- Setup Instructions
Note: You will need to plug this into a USB phone charger or computer USB port for power.
Shipping and Warranty
Shipping
- Free US Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via built-in USB to UART, or FTDI Pins
- Program using Arduino IDE or similar
- Hackable!
