London Underground - District Line
Rapid Transit
Tracks trains on the District line of the London Underground, showing trains arriving in stations live, as each vehicle moves around the network.

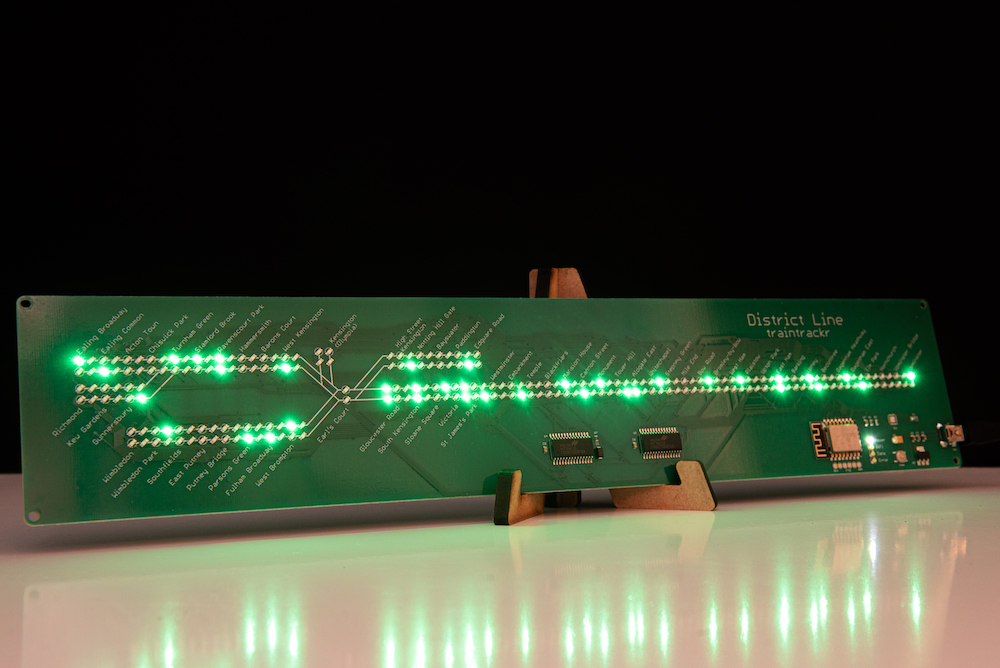

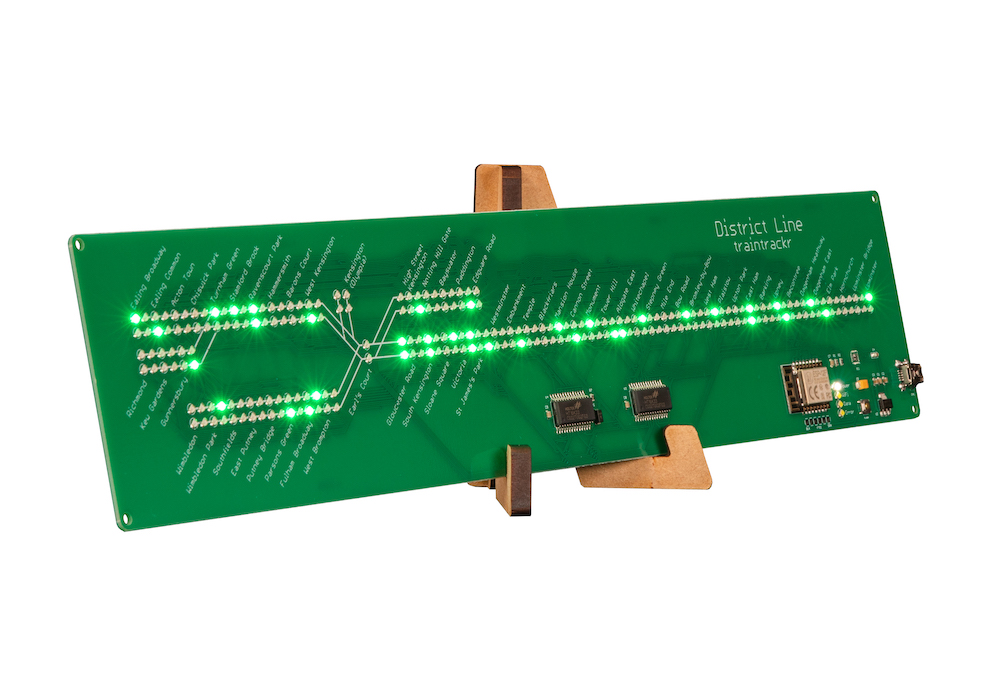

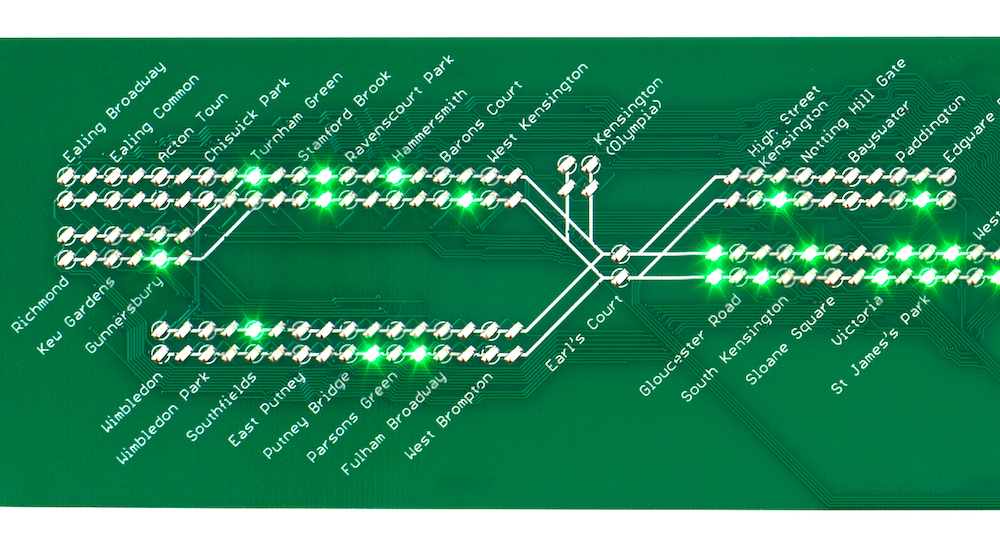

Board shows all District line stops, showing trains moving in both directions on two sets of LEDs
Receives live data over WiFi
LEDs update every second
Uses surface mount LEDs
$129
In Stock
Ships from the US
Ships to the US
and Canada
Includes Standard
1 Year Warranty
Designed in Somerville USA
and London UK
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Type: 0805 Surface Mount
- LED Size: 2.0mm x 1.25mm
- Brightness control: 16 Level
- 500mA @ 5V
- Included: 1.8M USB Cable
- Material: 1.6mm FR-4
- Size: 400mm x 80mm (15.7in x 3.1in)
- Colour: Green

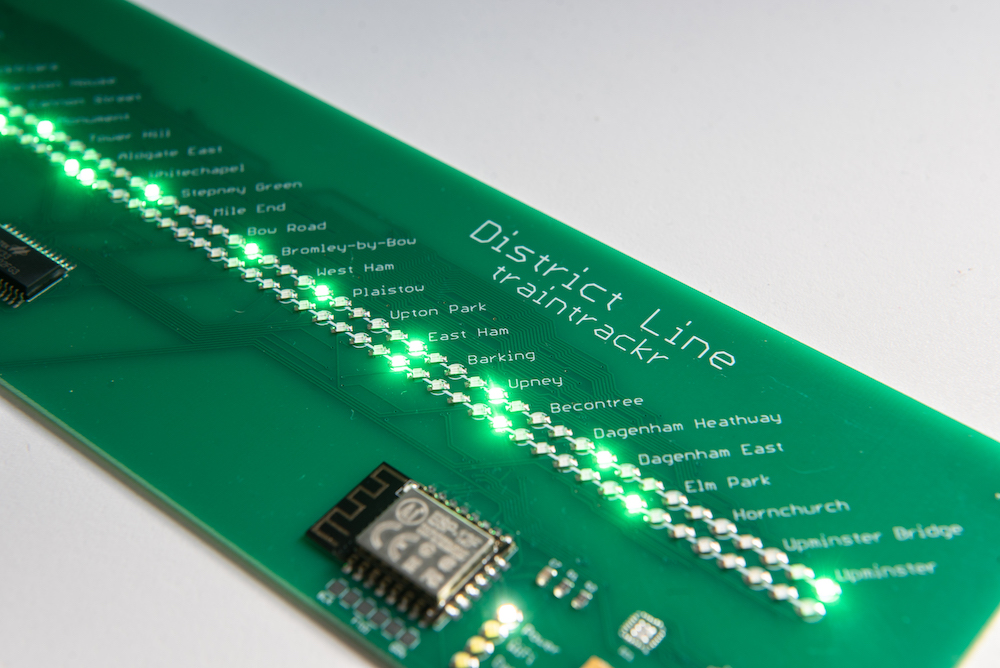

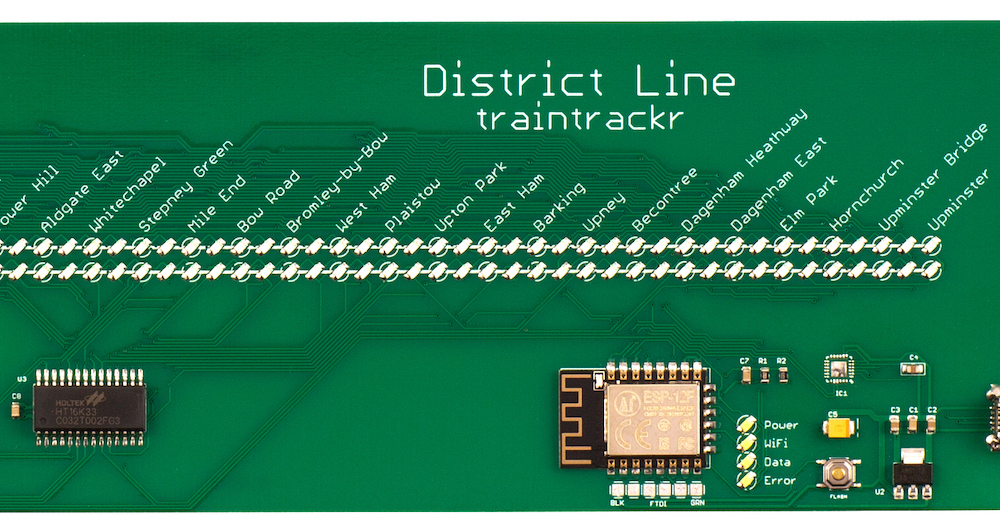

- Microcontroller: ESP8266 (ESP-12E)
- LED Driver: HT16K33
- USB to UART: CP2104 (on some boards)
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?

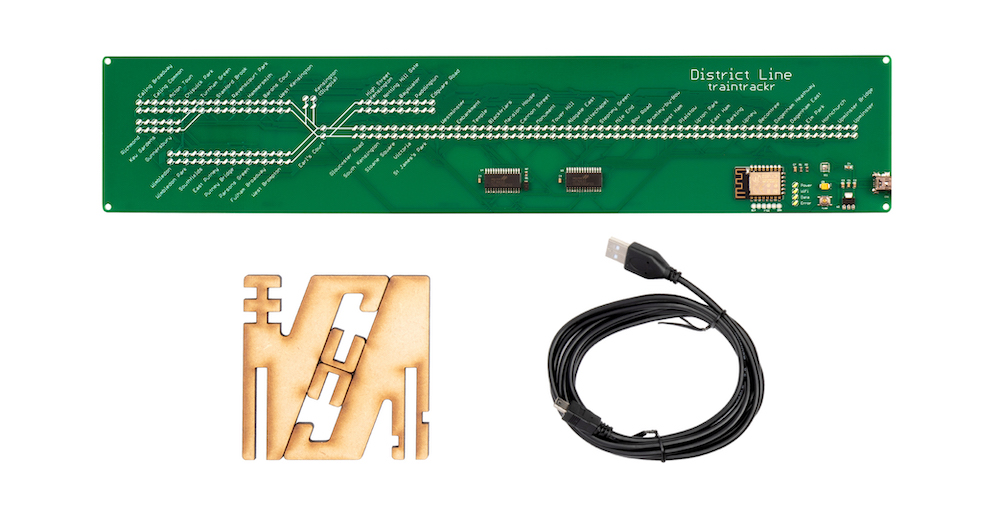

Package Contains
- Live Tracker
- Wooden Stand
- USB Cable
- Setup Instructions
Note: You will need to plug this into a USB phone charger or computer USB port for power.
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via built-in USB to UART, or FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.
