London Underground - Central Line
Tracks trains on the Central line of the London Underground, showing trains arriving in stations live, as each vehicle moves around the network.

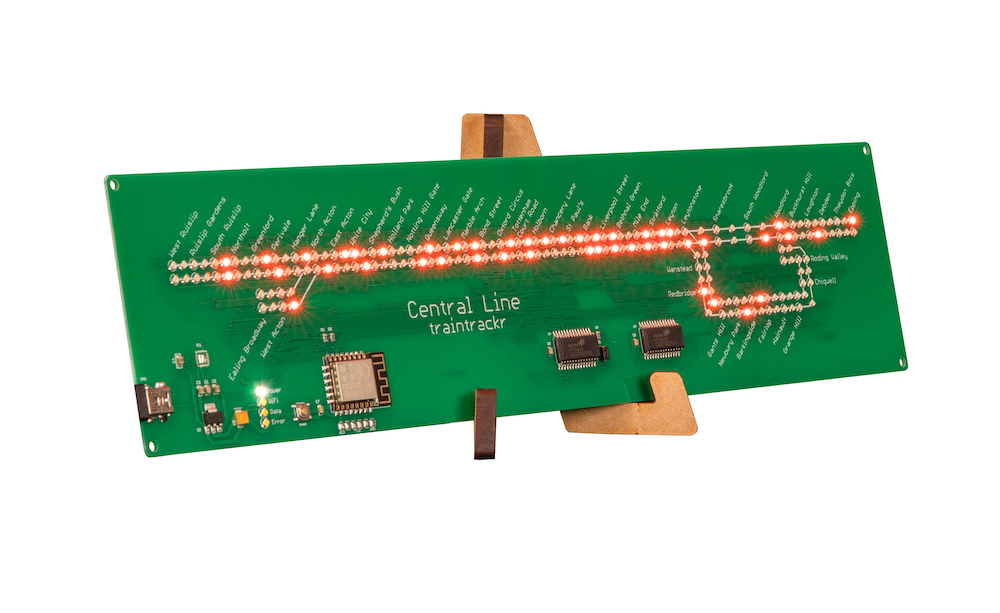

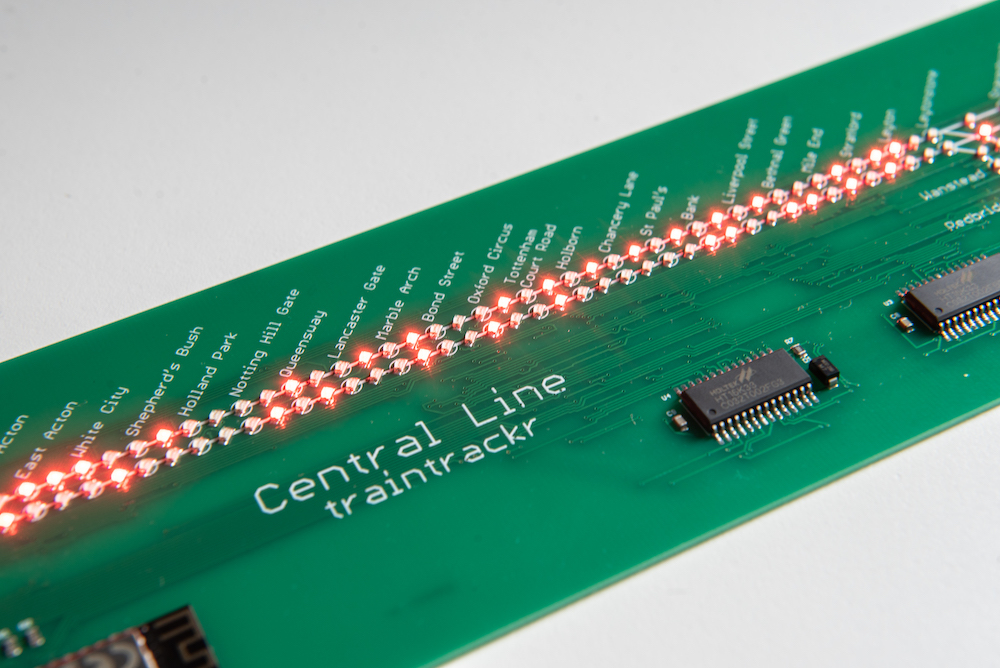

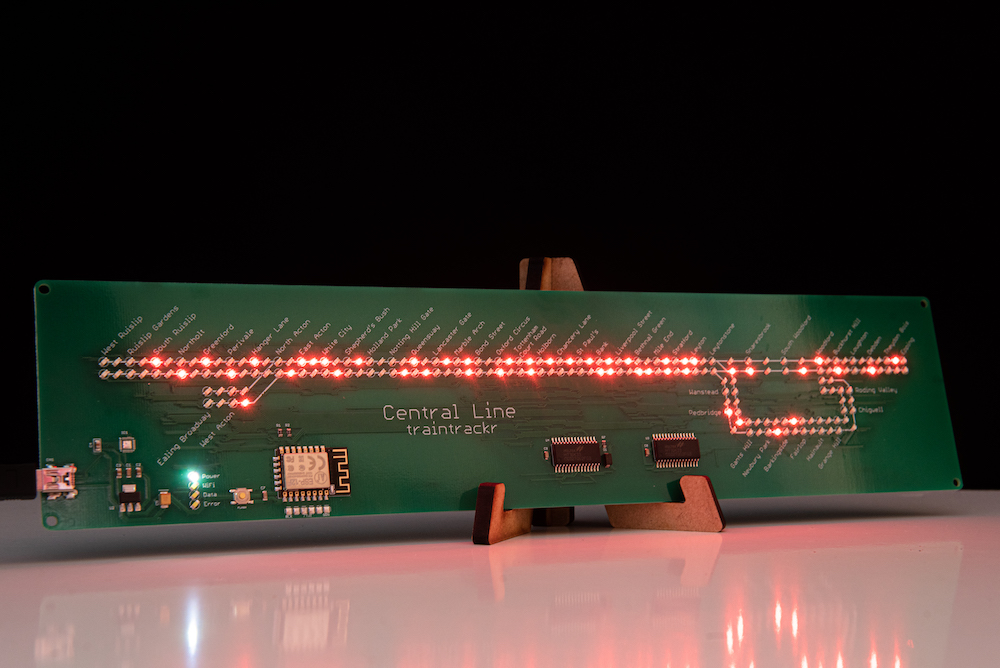

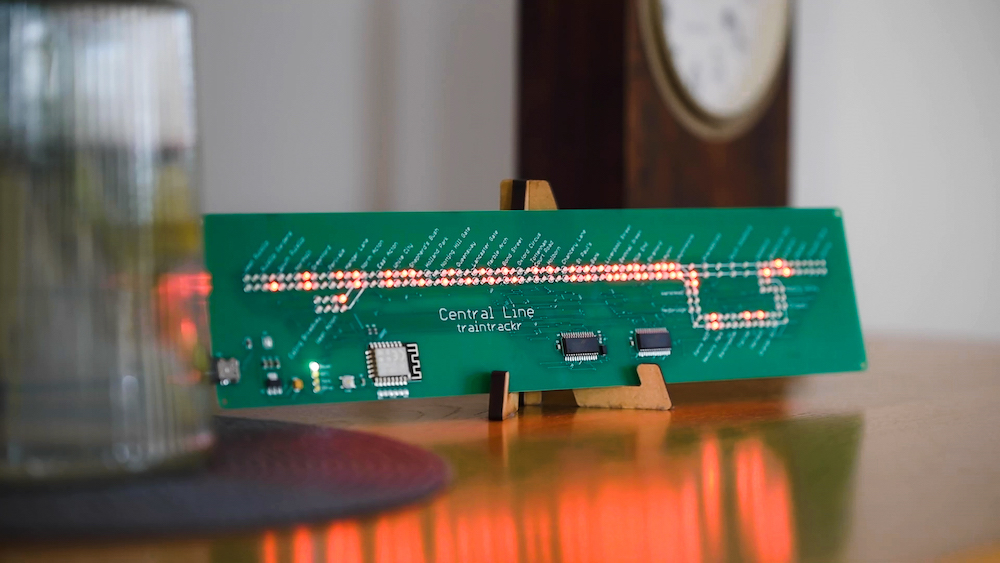

Board shows all Central line stops, showing trains moving in both directions on two sets of LEDs
Receives live data over WiFi
LEDs update every second
Uses 198 Red LEDs
$129
Ships September 2021
Ships from the US
Ships to the US
and Canada
Includes Standard
1 Year Warranty
Designed in Somerville USA
and London UK
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 198
- LED Type: 0805 Surface Mount
- LED Size: 2.0mm x 1.25mm
- LED Colour: Red
- Brightness control: 16 Level
- 500mA @ 5V
- Included: 1.8M USB Cable
- Material: 1.6mm FR-4
- Size: 350mm x 80mm (13.8in x 3.1in)
- Colour: Green

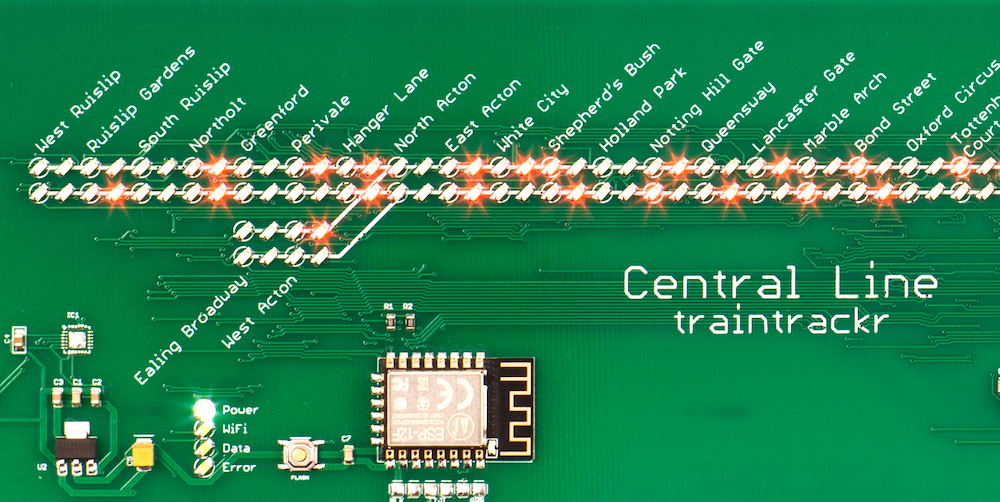

- Microcontroller: ESP8266 (ESP-12E)

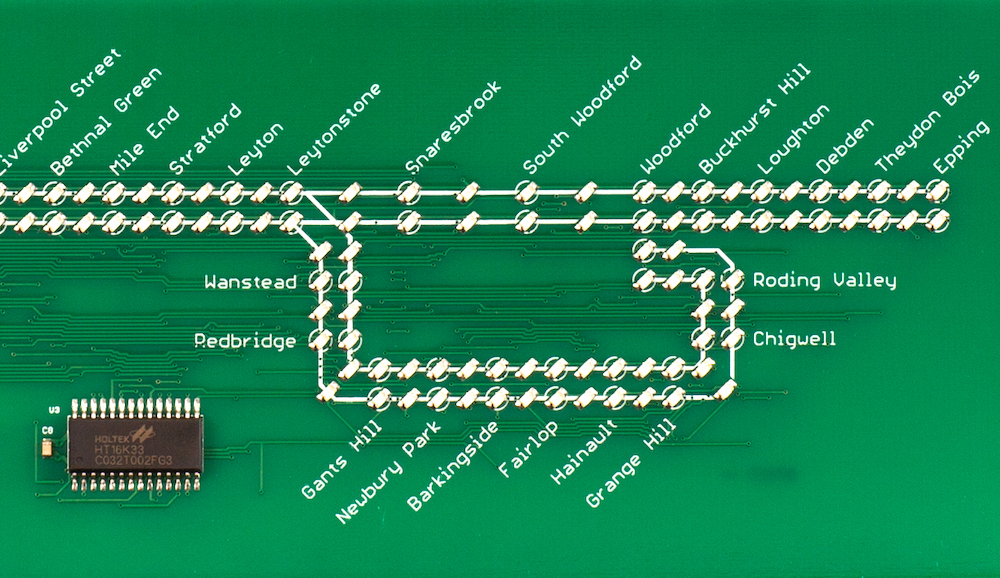

- LED Driver: HT16K33
- USB to UART: CP2104 (on some boards)
- Material: 6mm MDF
- Laser cut ready to assemble

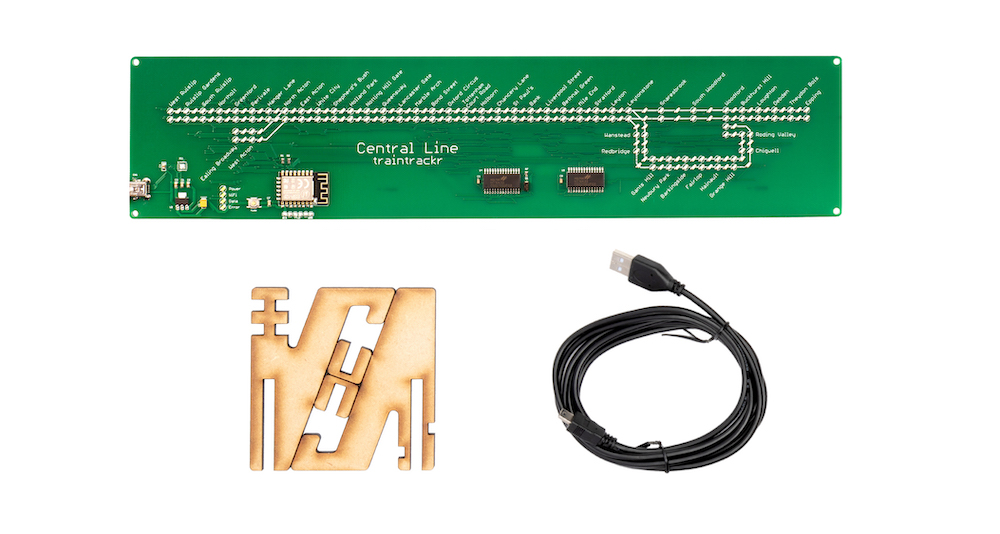

What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- USB Cable
- Setup Instructions
Note: You will need to plug this into a USB phone charger or computer USB port for power.
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via built-in USB to UART, or FTDI Pins
- Program using Arduino IDE or similar
- Hackable!
To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.
