BART - San Francisco Bay Area

Rapid Transit

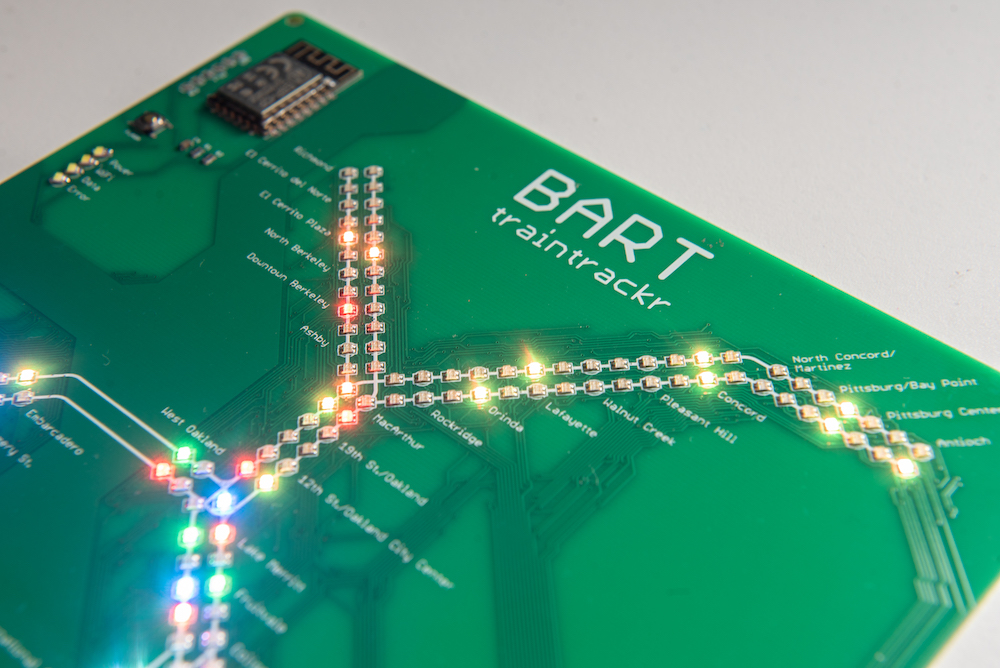

Tracks trains on BART in San Francisco, showing live locations as each vehicle moves around the network.

This board shows trains going in both directions to all Berryessa/North San José–Richmond, Antioch–SFO/Millbrae, Berryessa/North San José–Daly City, Richmond–Millbrae, Dublin/Pleasanton–Daly City, SFO–Millbrae, Coliseum–Oakland International Airport line stops with station names.

Receives live data over WiFi

LEDs update every second

Uses 200 RGB (Red, Green, Blue) LEDs

There is an updated version of this product available: View Product

Ships from the US

Ships to the US
and Canada
Switch to UK

Includes Standard
1 Year Warranty

Designed in
London UK, and
Somerville USA

Looking for shipping to the UK and Europe? Try our UK Site

Specifications

Connectivity

WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
Data: Connects to our server every minute
Or connect to your own data sources

Display

LED Count: 200
LED Type: 1616 Surface Mount
LED Colour: RGB (Red, Green, Blue)
Brightness control: 16 Level

Power

1000mA @ 5V
Included: Power supply and Cable

Circuit Board

Material: 1.6mm FR-4
Size: 170mm x 210mm (6.7in x 8.3in)
Colour: Green

Main Components

Microcontroller: ESP8266 (ESP-12E)
LED Driver: IS31FL3741A

Stand

Material: 6mm MDF
Laser cut ready to assemble

What's in the Box?

Package Contains

Live Tracker
Wooden Stand
Power Supply and Cable
Setup Instructions

Shipping and Warranty

Shipping

Ships to the US and Canada
Tracking code supplied once dispatched

Warranty

Standard 1 Year

Maker Friendly

Firmware

Flash the chip via FTDI Pins
Program using Arduino IDE or similar
Reprogrammable!

To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.
