Boston MBTA - Dual Direction
Tracks trains on the MBTA in Boston, showing live locations as each vehicle moves around the network.

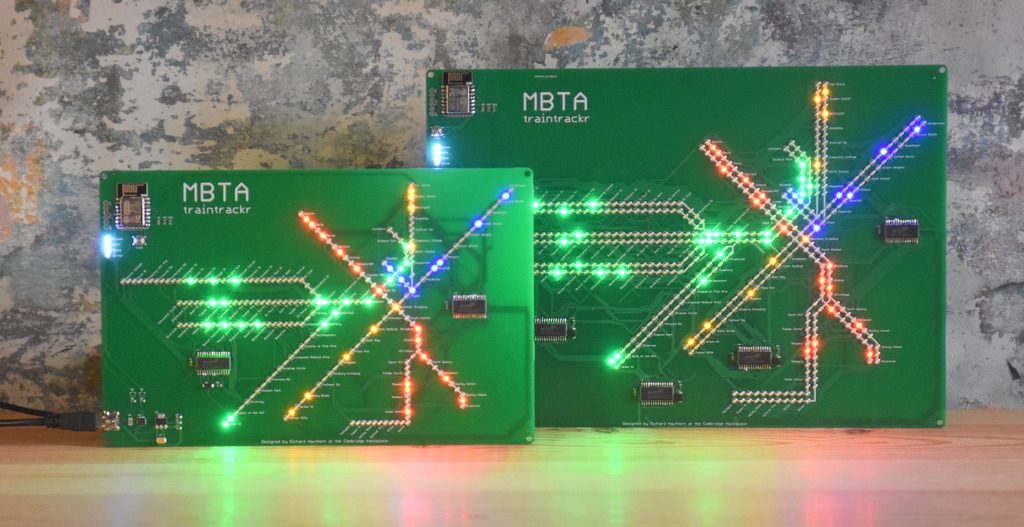

This board shows trains going in both directions to all Red line, Blue line, Orange line and Green line stops with station names.
Animation shown at 5x Speed
Receives live data over WiFi
LEDs update every second
Uses 502 Red, Green, Blue, and Orange LEDs
$199
In Stock
Free US Shipping
Included
Ships to the US
and Canada
Includes Standard
1 Year Warranty
Designed in Somerville USA
and London UK
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to server every minute
- LED Count: 502
- LED Type: 0805 Surface Mount
- LED Size: 2.0mm x 1.25mm
- LED Colour: Red, Green, Blue, and Orange
- Brightness control: 16 Level
- 500mA @ 5V
- Included: Power supply and Cable
- Material: 1.6mm FR-4
- Size: 285mm x 200mm (11.2in x 7.9in)
- Colour: Green
- Microcontroller: ESP8266 (ESP-12E)
- LED Driver: HT16K33
- USB to UART: CP2104
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?
Package Contains
- Live Tracker
- Wooden Stand
- Power Supply and Cable
- Setup Instructions
Shipping and Warranty
Shipping
- Free US Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via built-in USB to UART, or FTDI Pins
- Program using Arduino IDE or similar
- Hackable!
Hats off to @TrackrTrain these PCBs of rail networks that use live open data to show real-time movements are awesome.
